MOTORISATION
Motorisation is a popular option for a variety of our products. With many suppliers and specifications to choose from, you can use this page as a one-stop resource for our Motor selection and Remote programming information.
MOTORISATION
Motorisation is a popular option for a variety of our products. With many suppliers and specifications to choose from, you can use this page as a one-stop resource for our Motor selection and Remote programming information.
QUICK-VIEW MOTOR CHART
Here is a Quick-View chart of the motorised range for your convenience. For more details you can scroll down the page and view each motors specifications or use the quick-link buttons above to go directly to a supplier of your choice.
(best viewed on Large Screen)
WebMotor–Page–22-01-18( Last updated: 22/01/18 )
ROLLEASE
ACMEDA
Motors, Remotes & Control Systems
ROLLEASE
ACMEDA
Motors, Remotes & Control Systems
ROLLEASE ACMEDA AUTOMATE E-SERIES | E6 MOTOR
AUTOMATE | E tubular AC motors combine the simple, intuitive features of ARC “Automate Radio Communication” with the higher lifting capacity of an AC motor for larger shade applications.
Leveling Control allows for precise positioning of individual or multiple shades ensuring perfect alignment every time whilst bi-directional communication ensures you can always keep track of your shades position when integrated into smart home applications.
FEATURES:
Levelling control.
Simple limit setting adjustment.
Favourite Position.
ARC protocol, 2-way RF communication and simplified programming.
“Slim Head” design minimises light gap.
Low noise operation.
SUITABLE FOR:
Paradigm Remotes (Single & Fifteen channel)
Automate Pulse
PROGRAMMING INSTRUCTIONS:
| Power Supply | 220 – 240V |
| Torque | 6.0 Nm |
| Running Time | 4 Min |
| Speed | 28 RPM |
| Frequency | 433.92 MHz |
| RF Modulation | FSK |
| IP Rating | IP44 |
| Limit switch type | Electronic |
| Amps | 0.67 A |
| Temp working range | 0°C to 60°C |
| Insulation class | I.CL.A |
| Sound rating | ~46dB |
ROLLEASE ACMEDA AUTOMATE M-SERIES | M6 MOTOR
AUTOMATE M6 is a high performance mechanical limit motor compatible with our medium roller blind hardware systems and building automation system controllers.
The M6 features slim white head-units for minimal light gaps and a clean, unobtrusive appearance. All Automate motors are backed by our 5 year motor warranty for peace of mind.
FEATURES:
Compatible with building automation system controllers.
6Nm torque, 28rpm speed.
COMPATIBLE WITH:
S45 Tube
Easy-Link systems
| Power Supply | 240V / 50Hz |
| Capacity | 6Nm 28 rpm |
| Running Time | 4 Min |
| Weight Capacity | 19Kg |
| Consumption | 121W |
| Protection class | IP44 |
| Dimensions | 481mm length |
| Min. blind size | 580mm |

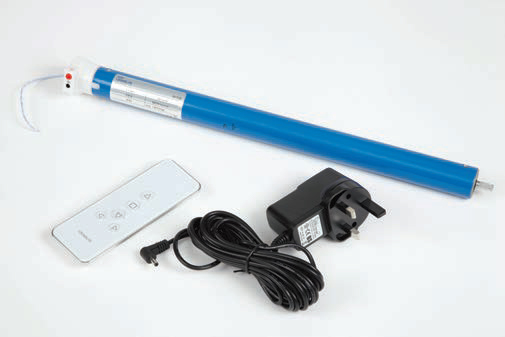

ROLLEASE ACMEDA AUTOMATE | LI-ION 3.0, 2.0 & 1.1
AUTOMATE | Li-ion ARC motors offer a wirefree rechargeable easy to use and program solution to suit a large range of applications, with varying torques and speed levels.
The Levelling Control feature allows for precise positioning of multiple shades ensuring perfect alignment. Additionally, a favourite position can be pre-set and recalled at any time.
FEATURES:
Levelling control.
Simple limit setting adjustment.
Favourite Position.
Three operational speed settings available
2-way RF communication
Rechargeable built in Li-ion battery
Optional Solar powered charger
New ARC protocol for simple programming
PROGRAMMING INSTRUCTIONS:
PRODUCT OPTIONS:
Automate Solar Panel Charger
Automate Li-ion 3.0
Automate Li-ion 2.0
Automate Li-ion 1.1
| Voltage | 12 |
| Torque | 3.0 Nm |
| Running Time | 10 Min |
| Speed | 28 RPM (Adjustable to 24 or 20) |
| Radio Frequency | 433.92 MHz |
| RF Modulation | FSK |
| IP Rating | IP44 |
| Limit switch type | Electronic |
| Amps | 0.83 A |
| Battery Size/Type | 4000mAH |
| Temp working range | 0°C to 60°C |
| Insulation class | III |
| Voltage | 12 |
| Torque | 2.0 Nm |
| Running Time | 10 Min |
| Speed | 28 RPM (Adjustable to 24 or 20) |
| Radio Frequency | 433.92 MHz |
| RF Modulation | FSK |
| IP Rating | IP44 |
| Limit switch type | Electronic |
| Amps | 1.25 A |
| Battery Size/Type | 2600mAH |
| Temp working range | 0°C to 60°C |
| Sound Level | -44 DB |
| Voltage | 12 |
| Torque | 1.1 Nm |
| Running Time | 10 Min |
| Speed | 40 RPM (Adjustable to 30 or 20) |
| Radio Frequency | 433.92 MHz |
| RF Modulation | FSK |
| IP Rating | IP44 |
| Limit switch type | Electronic |
| Amps | 0.83 A |
| Battery Size/Type | 1400mAH |
| Temp working range | 0°C to 60°C |
| Insulation class | III |
ROLLEASE ACMEDA AUTOMATE | PARADIGM REMOTES
AUTOMATE | Paradigm remotes feature a contemporary design with touch sensitive controls.
Available in single and fifteen channel models, Paradigm remotes are compatible with all ARC motors.
FEATURES:
Available in single channel & Fifteen Channel
Touch sensitive buttons
Levelling control (15 channel remote)
LCD display (15 Channel remote)
Hide unused channel function
Slim Magnetic wall mount
PROGRAMMING INSTRUCTIONS:
Automate Paradigm Single
Automate Paradigm Fifteen
| Voltage | 3V (CR2450) |
| Frequency | 433.92 MHz |
| Transmitting Power | 10 milliwatt |
| Ambient Operating Temperature | -10°C to 50°C |
| Transmission Distance | up to 200 meters (open space) |
| Temp working range | 0°C to 60°C |

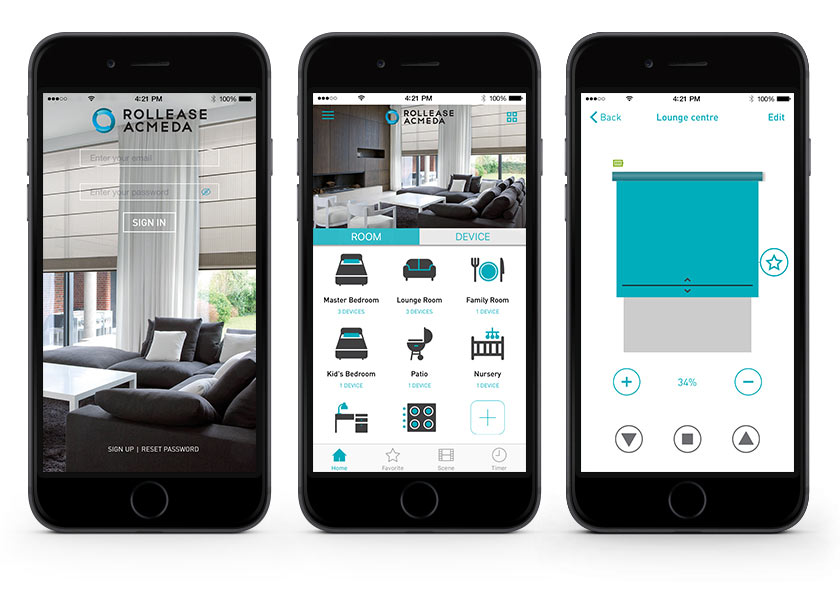

ROLLEASE ACMEDA AUTOMATE PULSE
Take advantage of the full features ARC has to offer with Automate PULSE. Whether you are at home or away you can accurately control your shades via the animated interface on your smartphone. Bi-directional communication allows you to visualise the exact positioning of your internal and external shades whilst also allowing you to check the battery health of your wirefree motors.
Getting started is simple via the easy to follow setup wizard. Create rooms, set timers & scenes for optimum comfort and allow Automate PULSE to take control. Installers can also take advantage of the convenient remote free setup to efficiently set motor limits with their smart phone.
FEATURES:
- Easily integrate shade control into any 3rd party automation system capable of communication via RS485(JG) or RS232 (adapter required)
- Easily monitor and control your shades from anywhere in the world via your smart phone. No complex port forwarding or router configuration required.
- Set and manage up to 20 timers to enable easy activation of preferred settings at various times of day.
- The step by step wizard guides you through the installation and makes setup a plug & play solution.
- ARC “Automate Radio Communication” protocol allows for information to be communicated in both directions, from the control device to the motor and back again. This allows for live shade positioning and battery health displays on your smart phone.
- Set and manage up to 20 scenes.
- Group shades into rooms. Configure & Operate a group of shades that belong to a room.
- Thanks to ARC technology there is no need to use a hand held remote. Our proprietary ARC technology allows for fast and easy configuration via the APP. Easily Set or re-adjust limits & correct motor direction.
- Manage multiple hubs in multiple locations. Easily switch between office, home, holiday home, all using the same account. Allows for 5 different locations per account with up to 5 hubs per location.
QUICK START GUIDE:
Click to download the free App for iOS and Android
RELATED PRODUCTS
| Installation | Desktop or wall-mounted |
| Power Input | 5VDC/1A |
| Rated Current | 500mA |
| Rated Power | <2.5W |
| Standby Power | ≤300mA |
| Wi-Fi Network | 802.11 b/g/n – 2.4GHz |
| Device Control Frequency | 433MHz |
| Radio Coverage | 30m for device control (indoors) |
| Protection Class | IP20 |
| Antenna | Built-in |
| Working Temperature | ≤300mA |
| Storage Temperature | 0°C to 60°C |
ROLLEASE ACMEDA AUTOMATE A.R.T.| INTERNAL SUNLIGHT SENSOR
Let Automate Reactive Technology take control. Rollease Acmeda have developed the A.R.T. (Automate Reactive Technology) series of sensors to improve comfort levels within your home by automating the operation of your motorised awnings and internal blinds.
FEATURES:
For indoor shades, the A.R.T. Internal Sunlight Sensor can automatically close your shades to help control sun glare, protect your interior from UV damage and assist to keep your home cool.
Discreet device easily mounts to the inside of your window with a suction-cup
Choice of 4 pre-set light intensity thresholds. Blinds will lower when sunlight intensity goes above the selected level
PROGRAMMING INSTRUCTIONS:
ROLLEASE ACMEDA AUTOMATE | LI-ION SOLAR PANEL CHARGER
HUNTER
DOUGLAS
Motors, Remotes & Control Systems
HUNTER
DOUGLAS
Motors, Remotes & Control Systems
HUNTER DOUGLAS | HDM40RF
HDRF is the latest in wireless motor technology incorporating bidirectional communication between each motor and the remote control to ensure that operation is always flawless and uninterrupted.
M40RF motors have an integrated radio receiver for simple one plug installation.
Motors can be configured and operated from the modern touch sensitive 4 Channel SUITE remote control.
Each M40RF motor contains in-built zero voltage contacts for connection to automation systems or operation from a switch control.
FEATURES:
Large single or linked blinds
Touch sensitive remote control for individual, group control. Also enables several groups to be operated together
Integrated power connector on motor head (no unsightly in-line connectors)
Exceptionally quiet and smooth operation
Electronic limits for fast button setup from the motor head or from the remote control
Integrated contact connectors on the motor head enables switch control or automation integration
Manufactured in Italy and the U.S.A
Superior RF range by utilising a bidirectional meshed network. Individual motors relay commands to other motors
QUICK SETUP INSTRUCTIONS: HDR
(Click image to enlarge)
| Motor Length | 587mm (min. blind width 700mm) |
| Power Cable Length | 2000mm (included with motor) |
| Torque (NM) | 4 NM |
| Limit Type | Electronic |
| Contact Type | Integrated dry contact open/common/close |
| RF Frequency | 2.4Ghz (802.15.4) |
| Rated Voltage | 240 V AC |
| Rated Current | 0.42 Amps |
| Run Time | 4 minutes |
| Typical Use | Roller blind remote control, switch control or automation |
| Light Gap | 22mm (outside bracket to cloth) |
HUNTER DOUGLAS | HDM40Q
HDM40Q contains a highly advanced in-built motor controller capable of bidirectional communication.
Utilising the powerful Hunter Douglas RQ protocol, commands can be sent and received via serial to virtually any automation or management system on the market.
The motor can be moved to any one of 100 positions from fully opened to fully closed along with pre-programmed scenes.
FEATURES:
Integrated RQ controller for high-end bidirectional automation integration
Large single or linked blinds
Integrated power connector on motor head (no unsightly in-line connectors)
Exceptionally quiet and smooth operation
Electronic limits for fast button setup from the motor head
Integrated contact connectors on the motor head enables switch control or automation integration
Manufactured in Italy and the U.S.A
SETTING MOTOR LIMITS: HDQ
(Click image to enlarge)
| Motor Length | 587mm (min. blind width 700mm) |
| Power Cable Length | 2000mm (included with motor) |
| Torque (NM) | 4 NM |
| Speed | 26 RPM |
| Limit Type | Electronic |
| Contact Type | Integrated dry contact SPST, SPDT, maintained or momentary action |
| Automation Type | Integrated RQ Protocal – 6 PIN RS232 serial via RQ Bridge |
| Rated Voltage | 240 V AC |
| Rated Current | 0.42 Amps |
| Run Time | 4 minutes |
| Typical Use | Roller blind, switch control or automation |
| Light Gap | 22mm (outside bracket to cloth) |
HUNTER DOUGLAS | HDM40SQ
The HDM40SQ is a super quiet 4 wire standard motor (active, neutral, earth and direction wires).
Designed specifically for direct 240 volt switch operation, or for connection to many controller based automation systems.
Includes an in line connector and 2.5m tail.
FEATURES:
Super quiet, less than 40 dba (according to ISO3746)
Large single or linked blinds
16mm square in-line connector
Manufactured in Italy
SETTING MOTOR LIMITS: HDSQ
(Click image to enlarge)
| Motor Length | 511mm (min. blind width 620mm) |
| Power Cable Length | 2500mm |
| Torque (NM) | 3 NM |
| Speed | 30 RPM |
| Limit Type | Manual |
| Rated Voltage | 240 V AC |
| Rated Current | 0.42 Amps |
| Motor Sound Level | Less than 40dba (according to ISO3746) |
| Run Time | 4 minutes |
| Typical Use | Roller blind, switch control or automation with optional controller |
| Light Gap | 22mm (outside bracket to cloth) |
| In-line Connector | Square 16mm diameter |
HUNTER DOUGLAS | MERGER MR
The Merger Range of motors are designed with a focus on remote control functionality at an extremely competitive price.
The Merger low-cost solution makes motorised blinds accessible for everybody.
The MR motor is a 240 volt AC remote control motor used for single or linked blinds, operated by a 1 or 4 channel remote control.
FEATURES:
Large single or linked blinds
1 and 4 channel remote control for individual or group control
Power cable with in-line connector
Simple programming and setup from the remote control
Manufactured in China
QUICK SETUP INSTRUCTIONS: MERGER MR
(Click image to enlarge)
| Motor Length | 560mm (min. blind width 680mm) |
| Power Cable Length | 2800mm (included with motor) |
| Torque (NM) | 5 NM |
| Speed | 28 RPM |
| Limit Type | Electronic |
| Contact Type | None |
| Rated Voltage | 240 V AC |
| Rated Current | 0.49 Amps |
| RF Frequency | 433 Mhz |
| Run Time | 4 minutes |
| Typical Use | Roller blind remote control |
| Light Gap | 20mm (outside bracket to cloth) |
HUNTER DOUGLAS | TOUCH SENSITIVE REMOTE CONTROL
4 Channel Touch Sensitive Remote Control. Allows a maximum of 4 groups of 4 motors (16 motors in total). Individual group control is possible. Eg. Individual groups can be independently selected and operated.
1 Channel Touch Sensitive Remote Control. Allows a maximum of 1 group of 4 motors (4 motors in total).
MERGER REMOTE CONTROL
4 Channel remote control with wall clip. For controlling up to 4 blind individually or unlimited motors can be paired to each channel and operated as a group.
1 Channel remote control with wall clip. Remote control used to setup motor network, invite motors and remotes into the network and set motor limits.
SOMFY
Motors, Remotes & Control Systems
SOMFY
Motors, Remotes & Control Systems
SOMFY | INSTALLERS GUIDE
The Installers Guide pocket book version 4 has been made available in the ‘Somfy Residential’ app. Follow the links from this Somfy page or search for ‘Somfy Residential’ on the App Store or Google Play.

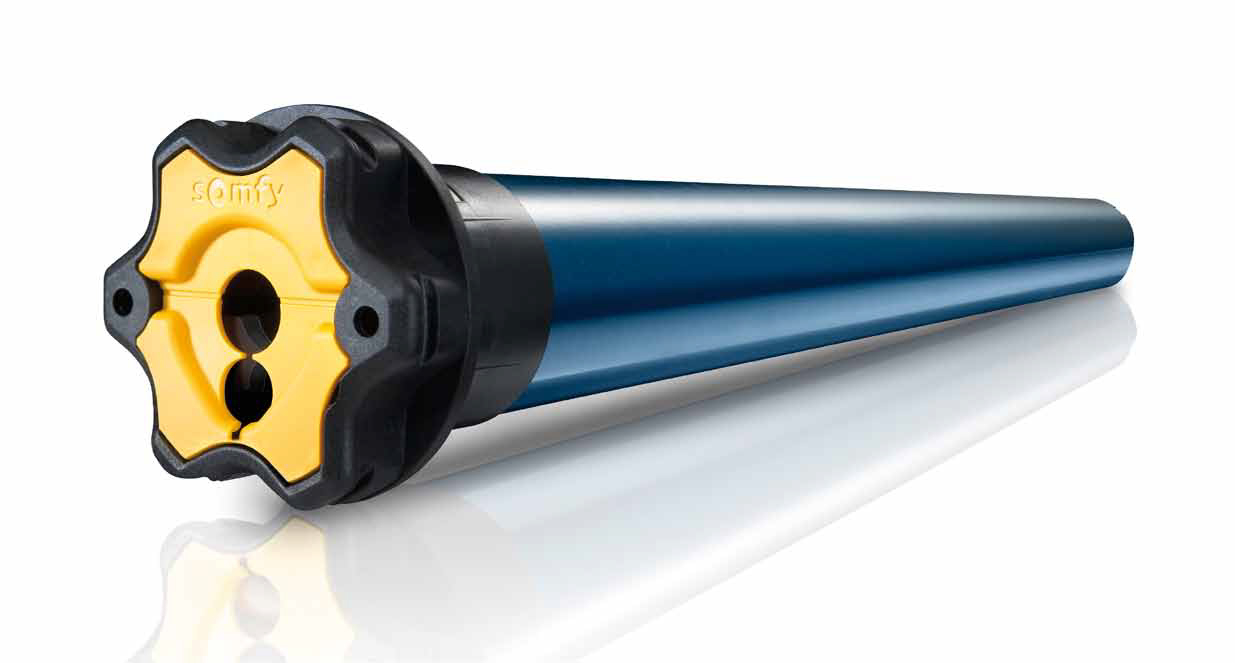

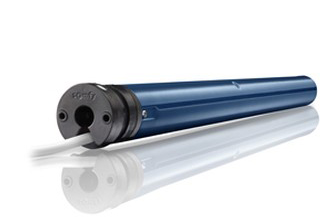

SOMFY | SONESSE 40 RTS
The new acoustic standard for the Interior Window Covering market.
FEATURES:
Quiet operation
RF(Radio Frequency) Remote Control
Move your blind with one click to your favourite “my” position
Thin motor head size to minimise gaps
SETUP: SONESSE 40 RTS
| Nominal Voltage / Frequency | 230 V / 50 Hz |
| Radio Frequency | 433.42 MHz |
| Thermal time | 5 minutes |
| Protection index | IP 44 |
| Insulation class | Class II |
SOMFY | SONESSE 50 RTS STAR HEAD
The new acoustic standard for the Interior Window Covering market.
FEATURES:
RF(Radio Frequency) Remote Control
Move your blind with one click to your favourite “my” position
Up and down end limits set by remote control
Visual feedback of the product to confirm any step of setting and programming
6 possibilities to orientate the motor head
Removable power cable
Integrated antenna
Quiet operation
SETUP: SONESSE 50 RTS STAR HEAD
| Nominal Voltage / Frequency | 230 V / 50 Hz |
| Supply | AC |
| Radio Frequency | 433.42 MHz |
| Torque (Nm) | 10 |
| Speed (rpm) | 28 |
| Limit switch unit | Electronic |
| Limit switch capacity | 300 turns |
| Thermal time | 4 minutes |
| Temperature working range | -20°C to +60°C |
| Electric insulation | Class I |
SOMFY | SONESSE 50 RA STAR HEAD
Rapid Adjustment (RA) Limit Switch Type.
| Nominal Voltage / Frequency | 230V-50Hz |
| Operating temperature | 0°C to +60°C |
| Torque (Nm) | 4 |
| Speed (rpm) | 32 |
| Thermal time | 4 minutes |
| Index protection rating | IP 31 |
| Safety level | Class I |

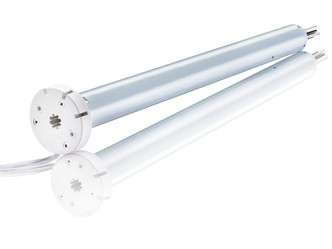

SOMFY | ROLLUP WIREFREE RTS
WireFree motorisation for small and medium applications.
FEATURES:
RF(Radio Frequency) Remote Control
Move your blind with one click to your favourite “my” position
No electrician required
Powered with “AA” batteries, solar pack or power supply
SETUP: ROLLUP WIREFREE RTS
| Nominal Voltage / Frequency | 12V DC |
| Radio frequency | 433.42 MHz |
| Protection index | IP-20 – Indoor use only |
| Type of limit switch unit | Electronic |
| Insulation class | III |
| Approval | RCM |

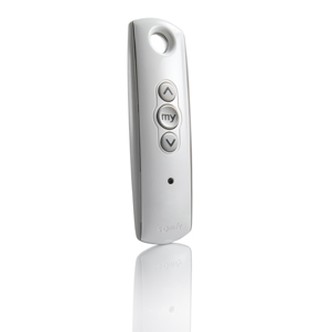

SOMFY | TELIS 1 RTS
The remote can manage 1 Motor or 1 group of motors. The “my” function will memorise your favourite position (for example roller half-down) and retrieve it immediately by pressing this key.
BENEFITS
1 Channel
Choice of 4 finishes (Patio, Silver, Lounge, Pure)
Patio finish adapted to outdoor use
Hand held or install on a wall support

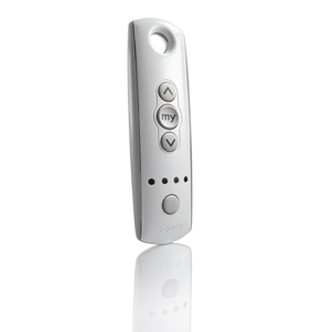

SOMFY | TELIS 4 RTS
The remote control can manage from 1 up to 5 Motors or 5 groups of Motors. The “my” function can memorise your favourite position (for example roller half-down) and retrieve it immediately by pressing this key
BENEFITS
From 1 up to 5 channels can control 5 Motors separately and provides the possibility for them to be operated all at once
Choice of 4 finishes (Patio, Silver, Lounge, Pure)
Patio finish adapted to outdoor use
Hand held or install on a wall support

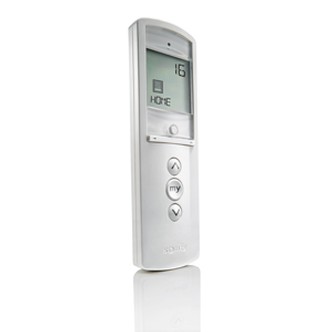

SOMFY | TELIS 16 RTS
The centralised remote control can manage up to 16 Motors and 16 groups of motors with easy customization of the channels.
BENEFITS
Memorises the favourite position of a product and allows
you to find it instantly by pressing the «my» button
Simple to program and to modify
Easily control all Motors, the user can name and assign icons to each group of products
LOUVOLITE
Motors, Remotes & Control Systems
LOUVOLITE
Motors, Remotes & Control Systems
LOUVOLITE | ONE TOUCH™ WAND
An impressive entry level product for the motorised blind market. Blinds are operated quietly and conveniently at the touch of a button using the stylish wand that sits at the edge of the blind.
FEATURES:
Child safe
No installation wiring required
Electronic limit setting to stop blind at highest and lowest point
Sleek aesthetics for ease of use
Right or left hand reverse rolled operation
Battery life: 6-12 months
Warning sound when battery charge is low
Minimum blind width 360mm
Weight Capacity: 2.4kgs (approx. 2.2m x 2.4m using Louvolite Carnival fabric)
SETUP: WAND PROGRAMMING INSTRUCTIONS
(Click image to enlarge)
| Rated torque | 0.7 Nm |
| Rated RPM | 34 rpm |
| Rated voltage | 12V DC |
| Rated power | 9.6W |
| Rated current | 0.8A |
| IP class | IP40 |
| Cable | 3 core |
| Inbuilt receiver | No |
LOUVOLITE | LITHIUM RECHARGEABLE
The Lithium 1100 series benefits from complete ease of use and economical maintenance with its rechargeable battery. The sleek remote quietly and conveniently controls up to 5 blinds from anywhere in the room. This luxurious motorised solution has the capacity to operate wider blinds up to 2.5m wide and 2.9m drop.
FEATURES:
Child safe
Sophisticated technology at your fingertips
Sleek aesthetics enhance the ease of use
No installation wiring required
Remote control operation – up to 5 blinds separately or simultaneously
Electronic stop setting
Battery life: 6-12 months (easily recharged)
Minimum blind width 455mm (with open cassette 460mm)
SETUP: LITHIUM RECHARGEABLE
(Click image to enlarge)
| Rated torque | 1.1 Nm |
| Rated RPM | 25 rpm |
| Rated voltage | 7V DC |
| Rated power | 2W |
| Rated current | 8A |
| IP class | IP40 |
| Inbuilt receiver | No |

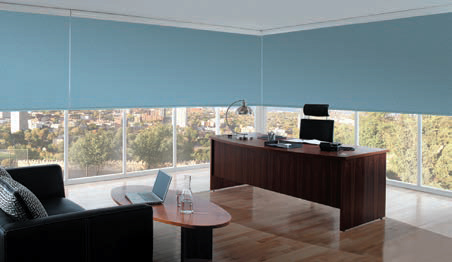

LOUVOLITE | MAINS OPERATED
The A/C motorised solutions are impressive systems ideal for large, modern windows and commercial installations. The 1500 series works with 35, 40 and 45mm tubes and has the ability to lift blinds up to 3m in width and 3.5m in drop.
The 6000 series works with 55mm tubes and has the ability to lift blinds up to 4m in width and 6m in drop.
The modern A/C remote control can operate up to a remarkable 15 blinds.
FEATURES:
Child safe
High powered mains systems designed to operate larger blinds
Remote control operation – up to 15 blinds separately or simultaneously
Adjustable upper and lower limits for optimum light control
Minimum blind width: 1500 Series – 500mm. 6000 Series – 650mm
Weight capacity: 1500 Series – 5kgs (approx. 3m x 3.5m). 6000 Series – 12kgs (approx. 4m x 6m) using Louvolite® Carnival fabric
SETUP: HARD WIRED
(Click image to enlarge)
| Rated torque | 1.5 Nm |
| Rated RPM | 32 rpm |
| Rated voltage | 230V DC |
| Rated power | 15.3W |
| Rated current | 0.13A |
| IP class | IP44 |
| Inbuilt receiver | Yes |
| Cable | 2 Core |
LOUVOLITE | WIREFREE CHARGER
Sold separately.
(UK version shown)

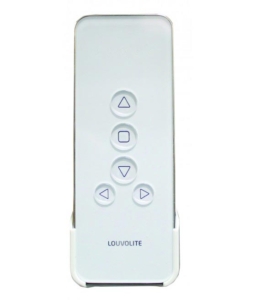

LOUVOLITE | 5 CHANNEL REMOTE
Remote control operation – up to 5 blinds separately or 4 blinds simultaneously.

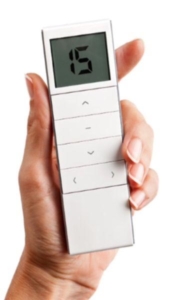

LOUVOLITE | 15 CHANNEL REMOTE
Remote control operation – up to 15 blinds separately or 14 blinds simultaneously.
TURNILS
Motors, Remotes & Control Systems
TURNILS
Motors, Remotes & Control Systems
TURNILS | MOMENTA CONTROL SYSTEM
Momenta is a fully motorised control system that offers the ultimate in child safety, convenience and ease of operation.
With no complicated wiring necessary, Momenta motorisation is easy to install, operate and maintain. This clever wireless technology allows the shades to be operated with the single touch of a button.
When raised or lowered, Arena Honeycomb Shades with Momenta can be programmed to stop in a customised, preset position.
Perfect for hard-to-reach windows, Momenta features quiet motor operation, powered by a choice of slimline battery pack with standard AA alkaline batteries, or use DC Power Supply which simply plugs in to a standard power supply outlet.
The Momenta battery pack powers the Arena Honeycomb Shade for approximately one year, depending on usage. When the AA batteries do need replacing, it is quick and easy to do so – and in most cases the honeycomb shade does not need to be removed.
Available in all 10 hardware colours, Momenta can be fabricated with all Arena Honeycomb fabrics except Essence Double Cell translucent and blockout.
